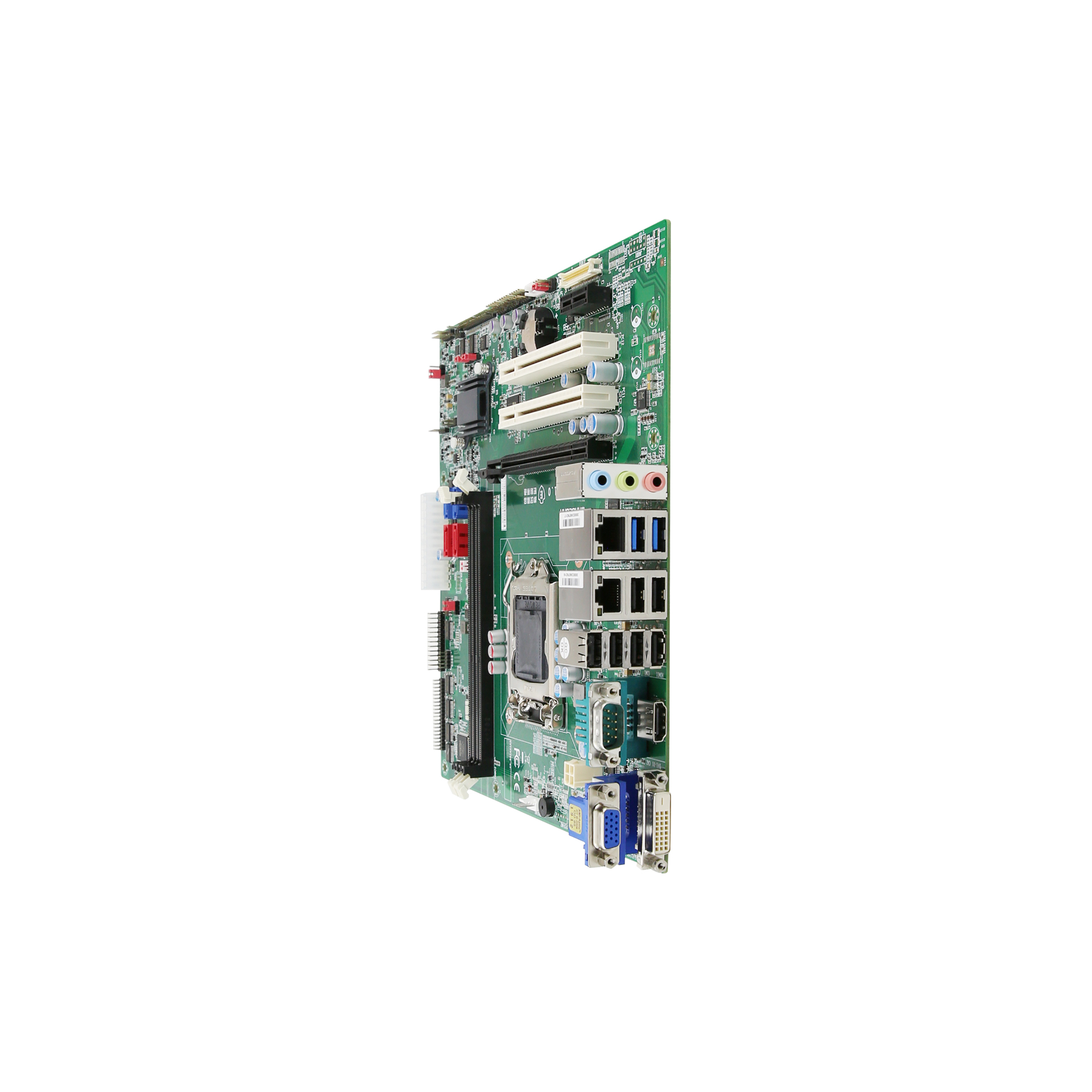

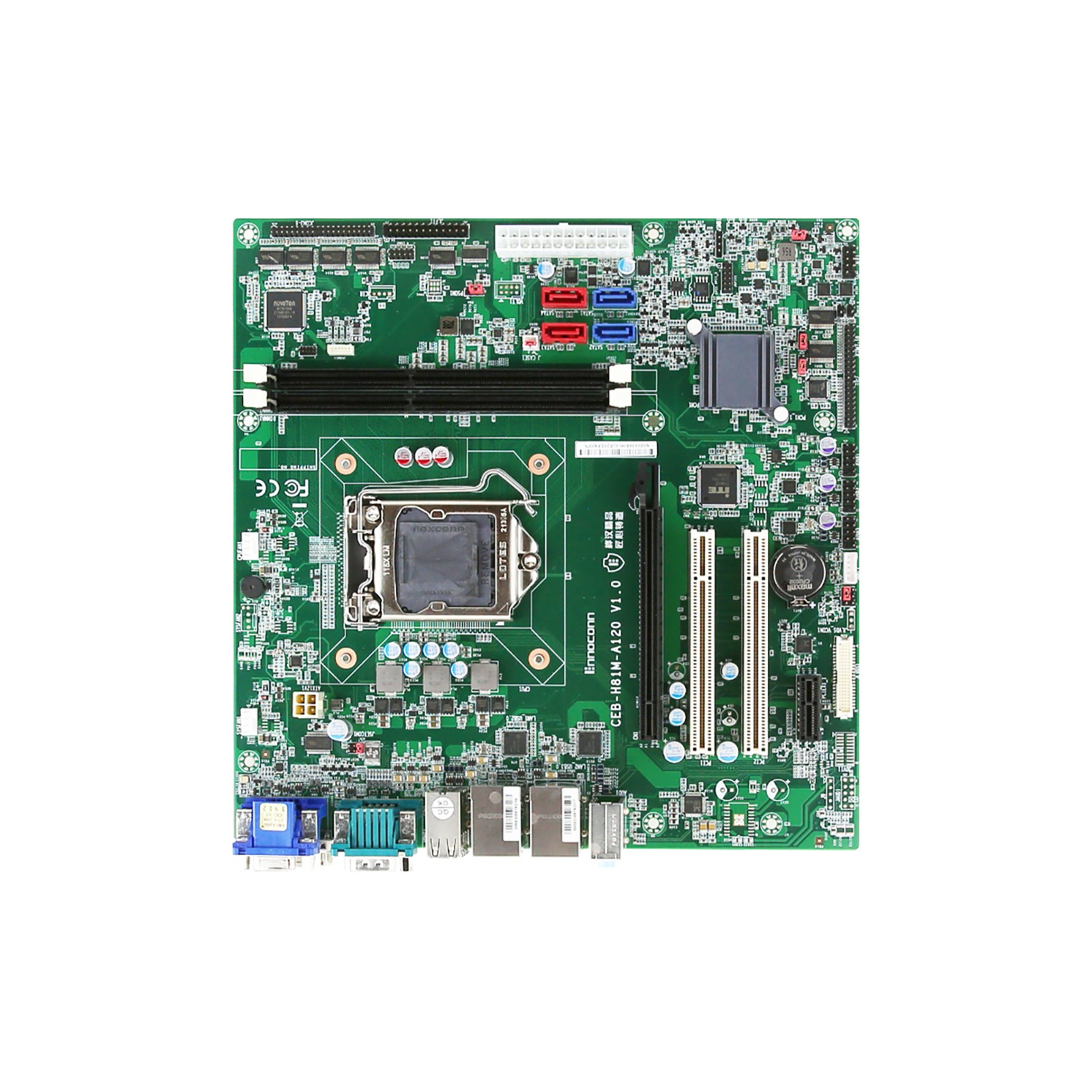

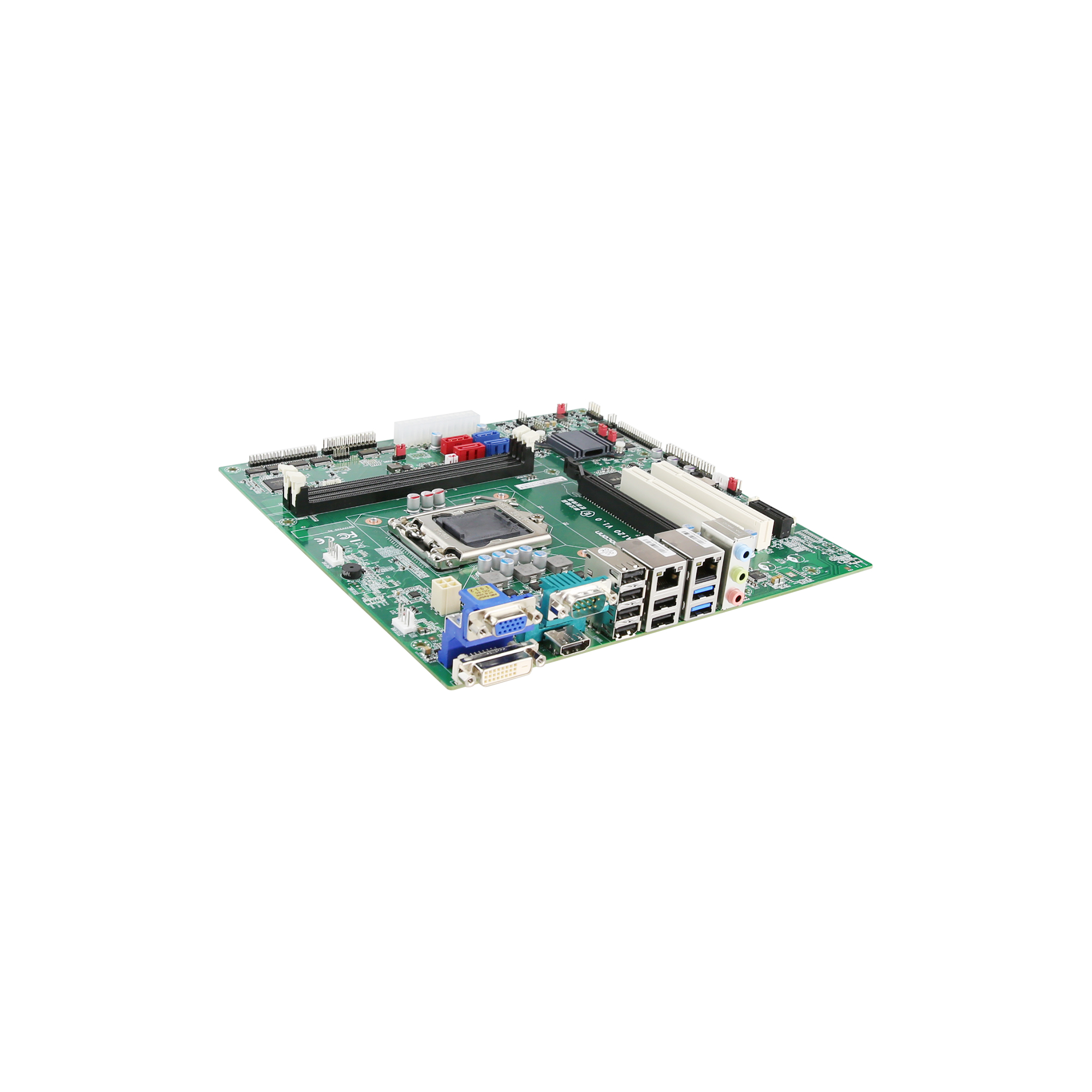

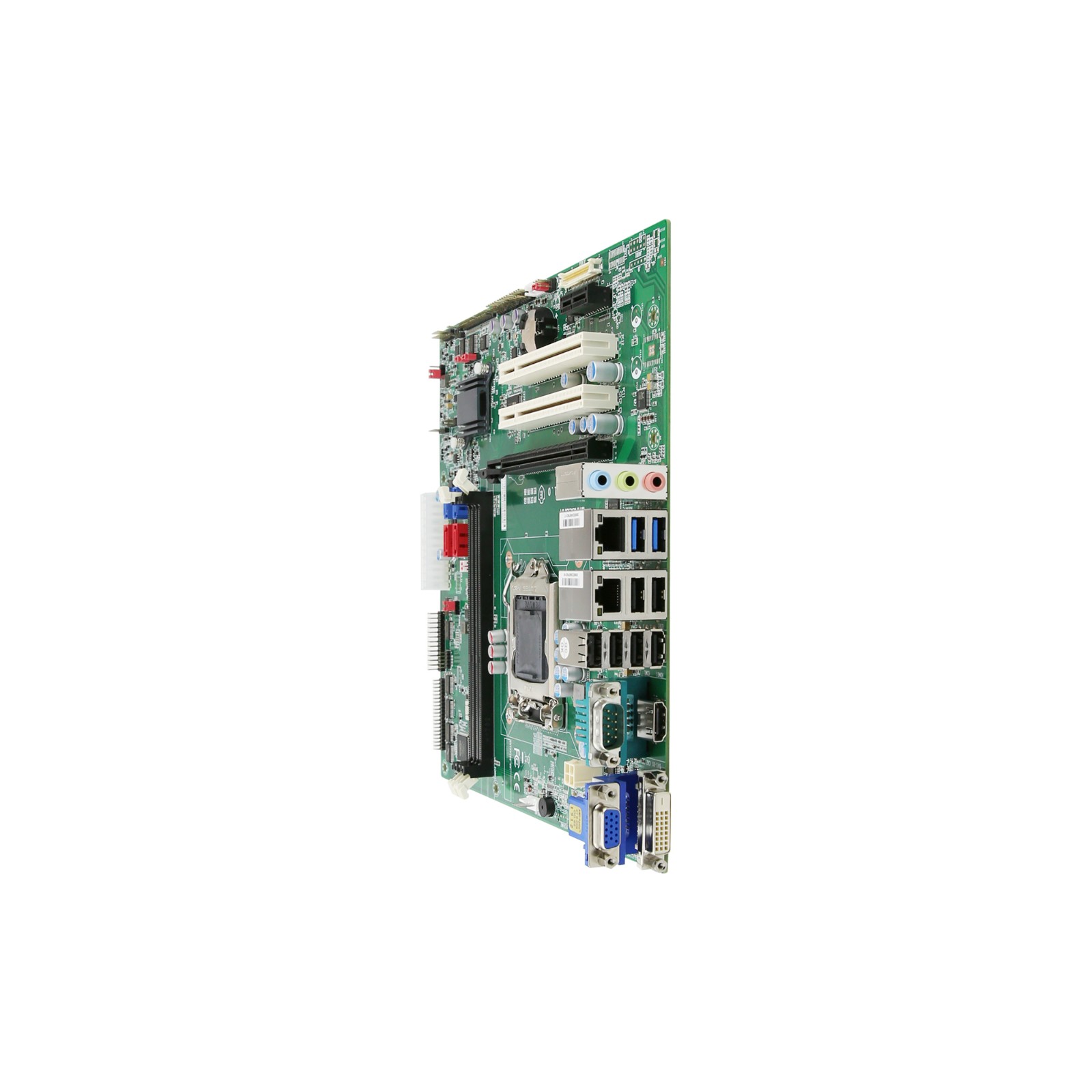

Micro-ATX工业主板 CEB-H81M-A120

Intel^®4代酷睿 i7/i5/i3/奔腾^®/赛扬^®处理器, 功耗最高支援到65W
双通道 DDR3(1.5V)1333/1600MHz, 高达16GB
支持VGA, DVI-D, HDMI, LVDS, 独立双显
支持双 GbEs, SATA3.0, USB3.0, 8位GPIO
支持2个RS232/422/485和8个RS232串联端口
1个PCIe X16 (Gen2)和1个PCIe X1, 和2个PCI 扩展口
支持 S5状态下USB断电功能
支持Ennoconn USB SR Pro技术

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel®4th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1150 Socket, TDP up to 65W

处理器 Processor	Intel^®4th Core ™ i7/i5/i3/Pentium^®/Celeron^® Processor, LGA1150 Socket, TDP up to 65W
芯片组 Chipset	Intel^® H81
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3(1.5V) 1333/1600MHz, up to 16GB
存储 Storage	2 x SATA2.0, 2 x SATA3.0
显示 Display	Intel^® HD Graphics
网口 Ethernet	2 x Intel^® i211-AT GbE (10/100/1000 Mbps)
音频 Audio	Realtek^® ALC888S HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

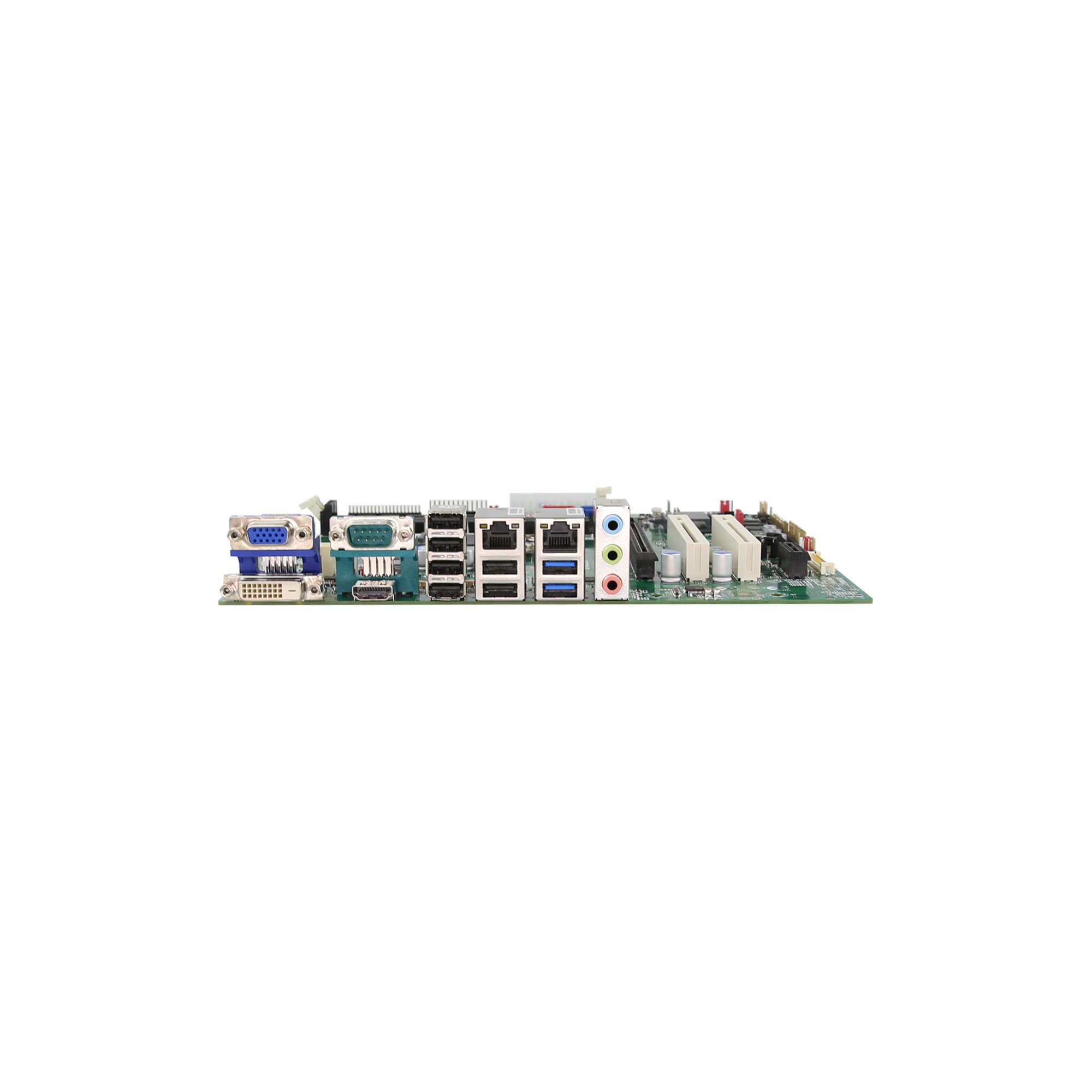

外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1600@60Hz 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 4096 x 2304@24Hz 2 x USB3.0, 6 x USB2.0 support USB SR Pro 2 x RJ45 1 x RS232 1 x Line-in, 1 x Line-out（5W/8Ohm AMP optional), 1 x Mic-in
内部接口 Internal I/O	1 x LVDS: supports dual channel 24 bit and up to 1920 x 1200@60Hz 6 x USB2.0 1 x 8 bit GPIO 2 x RS232/422/485, 7 x RS232 1 x CPU_Fan, 1 x SYS_Fan 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse)
扩展接口 Expansion	1 x PCIe X16 (Gen2) 1 x PCIe X1(Gen2） 2 x PCI
信赖平台模块 TPM	Nuvoton TPM1.2 (optional, need MOQ）
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6")
操作系统 OS	Windows7/8.1/10, Linux
看门狗 Watchdog Timer	System reset, Programmable via software from 1 to 255 seconds
